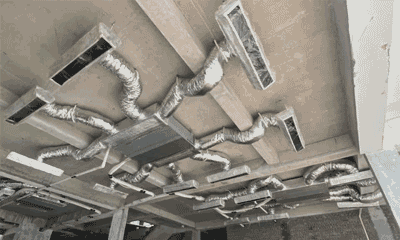

Ducted Air Conditioner – a type of air conditioning system specifically designed for central cooling setups, concealed in the ceiling and distributing air through a ductwork system.
1. General Overview:
A ducted air conditioner (also known as a concealed ceiling ducted system) is an air conditioning system designed to be installed within the ceiling, with only the supply and return air vents visible through the duct network. This is a modern cooling solution that ensures a high level of aesthetic uniformity for residential and commercial projects such as villas, hotels, premium offices, restaurants, and showrooms.
2. Key Advantages:
🔹 1. Concealed Ceiling Cooling
Maintains the interior aesthetics without exposing the air conditioning unit, unlike wall-mounted or cassette types.
🔹 2. Flexible Airflow Adjustment
Allows multiple supply/return air outlets to be arranged according to the space layout.
Ensures more even and comfortable cold air distribution.
🔹 3. High Airflow & Large Static Pressure
Can extend duct lengths, suitable for multi-room spaces or large areas.
🔹 4. Quiet & Low-Noise Operation
Indoor unit can be placed far from the main occupied area with effective sound insulation.
🔹 5. Centralized or Independent Control
Easily integrates with BMS or smart control systems (Wi-Fi, timers, sensors, etc.).
🔹 6. Adjustable Indoor Unit Height (Bottom or Rear Air Intake)
Flexible ducting design options.
🔹 7. Easy Maintenance & Cleaning
Air filters and fans are designed for easy removal during servicing.
| Specifications | Reference Value |
|---|---|
| Cooling Capacity | 5.0 HP (45,000 BTU/h) |
| Type | Cooling only / Cooling & Heating |
| Power Supply | Single-phase (220V) or Three-phase (380V) |
| Airflow Rate | 1,200 – 2,200 m³/h |
| External Static Pressure | 50 – 200 Pa (adjustable) |
| Indoor Unit Dimensions (L×W×H) | ~1,200 × 800 × 300 mm |
| Indoor Unit Weight | ~35 – 50 kg |
| Noise Level | 28 – 42 dB(A) (depending on fan speed) |
| Refrigerant Type | R410A or R32 |
| Duct Connection Type | Bottom return air or rear return air |
| Control | Wireless remote / Wall-mounted controller / Central control |
Ceiling Cassette Air Conditioner – a type of air conditioning unit installed flush with the ceiling, commonly used in offices, hotels, restaurants, retail stores, and other spaces with false ceilings.
Floor Standing Air Conditioner – also known as Cabinet Air Conditioner. This is a high-capacity cooling unit, specifically designed for large spaces that require rapid cooling.
