Industrial Air Conditioning – Central Air Conditioning is a high-capacity cooling system widely used in high-rise buildings, shopping malls, hotels, factories, manufacturing plants, and other large-scale projects.
Central Air Conditioning is a large-scale air conditioning system with one or more compressor–condenser units operating simultaneously, providing cooling for the entire building through indoor units, air ducts, or copper piping. This system can cool or heat multiple separate spaces, operates stably, saves energy, and can be easily managed via a central control system.
🔹 1. Cooling Multiple Areas Simultaneously
A central air conditioning system can serve multiple floors and rooms.
Independent temperature control for each zone.
🔹 2. Outstanding Energy Savings
Equipped with inverter technology and flexible load control.
Adjusts capacity based on the actual demand of each area, reducing energy consumption.
🔹 3. Automatic Adjustment of Cooling/Gas Flow

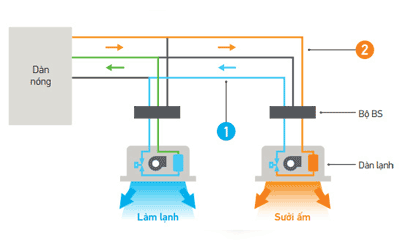

With VRF/VRV systems: automatically regulates refrigerant flow according to actual load for optimal efficiency.
🔹 4. Intelligent Control System
Integrated central control (BMS, BACnet, Modbus, etc.).
Monitoring and adjustment possible via computer or mobile devices.
🔹 5. Quiet Operation & High Durability
Optimized design for 24/7 operation.
Main components such as compressors, fans, and circuit boards have a long lifespan.
🔹 6. Easy Maintenance & Expansion
Modular system allows capacity upgrades when needed.
Each indoor unit operates independently, enabling zone-specific maintenance.
| Specification | Reference Value |
|---|---|
| Cooling Capacity | 20 HP (180,000 BTU/h) |
| System Type | VRF – 1 outdoor unit connecting up to 30 indoor units |
| Power Supply | 3-phase – 380V – 50Hz |
| Refrigerant | R410A or R32 |
| Operating Temperature Range | -5°C to +52°C |
| Maximum Indoor Unit Connections | 8–64 indoor units (depending on capacity) |
| Indoor Unit Types | Wall-mounted, ceiling cassette, ducted, FCU, etc. |
| Control Options | Remote control, central controller, app, BMS |
| Installation Method | Outdoor unit outdoors / Indoor units indoors |
| Noise Level | 45 – 55 dB(A) (outdoor unit) |
| Energy Efficiency (COP) | 3.5 – 4.5 (depending on model) |
