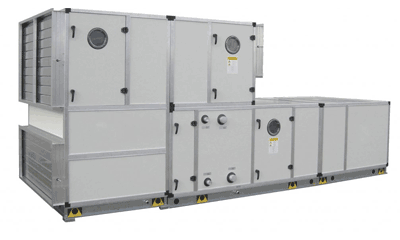

AHU System (Air Handling Unit System)

Price: Contact

The AHU system (Air Handling Unit) is widely used in central air conditioning systems, cleanrooms, high-rise buildings, factories, and hospitals.

Contact

Hotline:

Miền Bắc: +84.889162163

Miền Trung: +84.911133336

Miền Nam: +84.967878135

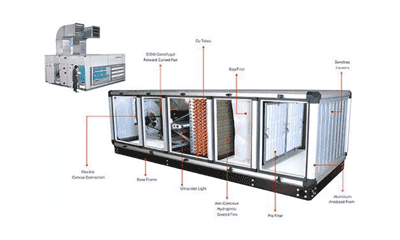

The Air Handling Unit (AHU) is the central component of an HVAC (Heating, Ventilation, and Air Conditioning) system, designed to condition air by filtering, cooling, heating, dehumidifying, or humidifying it, and then supplying fresh air or recirculating it into the occupied space.

An AHU is typically connected to a ductwork system and operates in conjunction with a Chiller or Heat Pump system to provide cooling or heating.

Key Features

Multi-functional air treatment: Efficient dust filtration, cooling, heating, humidity control, and heat exchange.
Flexible installation: Floor-mounted or ceiling-suspended configurations, adaptable to various spaces.
Stable operation: Low noise, long service life, and easy maintenance.
BMS integration: Compatible with Building Management Systems for smart monitoring and control.
High-standard applications: Suitable for critical environments such as hospitals, cleanrooms, and food/pharmaceutical manufacturing facilities.

Specifications	Reference Values

Airflow Capacity

2,000 – 100,000 m³/h

External Static Pressure

250 – 1,000 Pa

Air Filtration Efficiency

G4, F7, H13 (per EN 779 / EN 1822 standards)

Fan Motor Power

0.75 – 30 kW

Operating Noise Level

≤ 75 dB(A)

Cooling Coil Capacity

5 – 300 kW (depending on system configuration)

Power Supply

380 V / 3-phase / 50 Hz

Dimensions (L×W×H)

Customizable, starting from 1,500 × 800 × 800 mm

Casing Material

Galvanized steel or SUS304 stainless steel, with insulated foam panels
